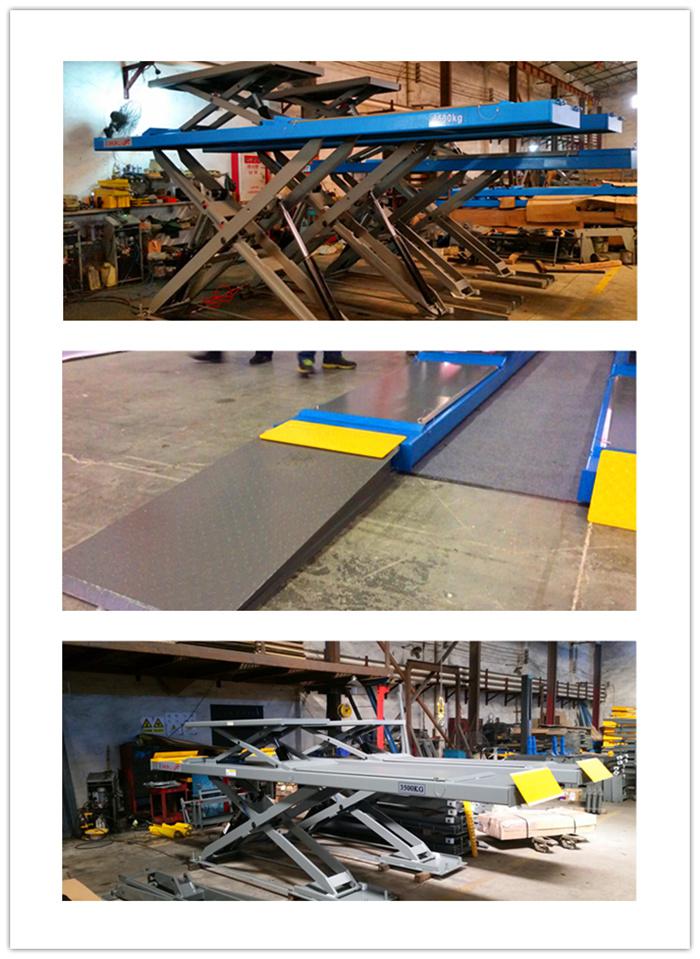

CD5040TCC Ultrathin Double Level Scissor Lif for Four Wheel Alignment

    ◆Double level scissor lift, 140mm above the ground at the lowest level

    ◆Adopt Italy technology to design

    ◆ 24V safety control circuit

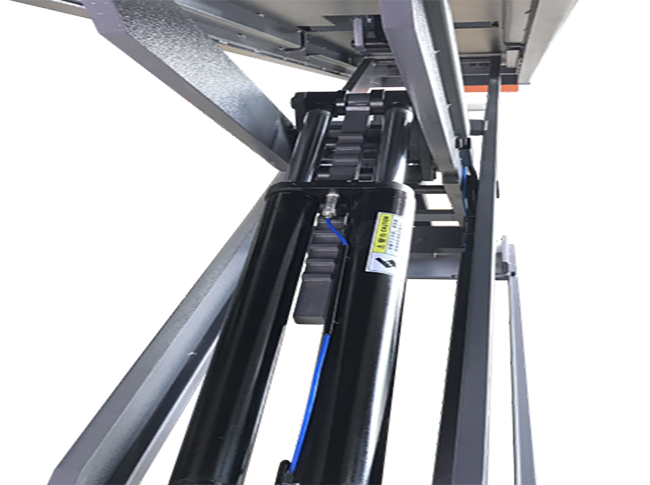

    ◆ 8 cylinders, double hydraulic balance system(main lift)and mechanical safety with automatic unlock are equipped

    ◆ Components are made by laser cutting machine or other CNC equipment

    ◆ Alloy solid steel X structure, good rust resistance and not easy to deformation


Product Features

·Double level scissor lift, 140mm above the ground at the lowest level

·Adopt Italy technology to design

· 8cylinders, double hydraulic balance system(main lift)and mechanical safety with automatic unlock are equipped

·24V safety control circuit

·Laser cutting whole-plate platforms, more accurate and stronger

·Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity

·Japanese oil sealing elements, Italian spherical valve, oil pipe explosion protective device, overload protection, international brand oil pipe

·Components are made by laser cutting machine or other CNC equipment

·Alloy solid steel X structure, good rust resistance and not easy to deformation

·Shot blasting and high temperature baking powder coated surface finish

·Second-level extensible platform

·Wear-resisting bearings, polymer wear-resistance slider

·Infra-red electronic leveling sensor, anti presser foot device

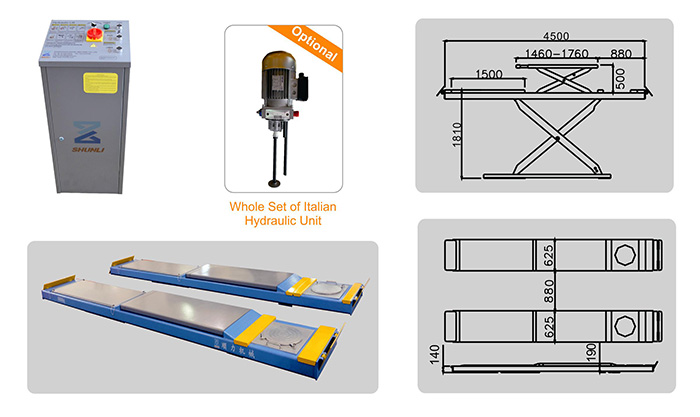

ModelCD5040TCCFOB Guangzhou price5050USD
Capacity of Main Lift5000kgSub lift Platform Length4500mm
Capacity of Sub-lift4000KGMain lift Platform Width625mm
Man lift Lifting Time40-60sSub-lift Platform Length1460-1760mm
Initial Height140mmSub-lift Platform Width600mm
Main Lift Lifting Height1810mmMotor Power380v/220v 3kw
Sub-lift Lifting Height500mmAir Pressure0.4-0.6mpa

CD5040TCC Ultrathin Double Level Scissor Lif for Four Wheel Alignment


CD5040TCC Ultrathin Double Level Scissor Lif for Four Wheel Alignment

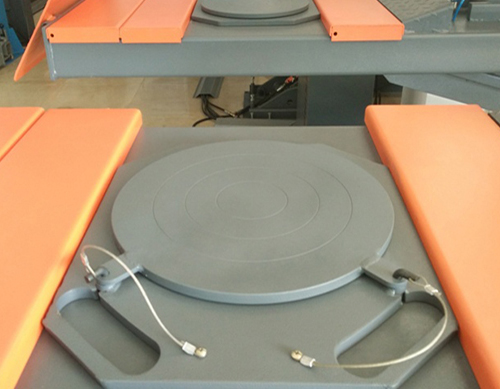

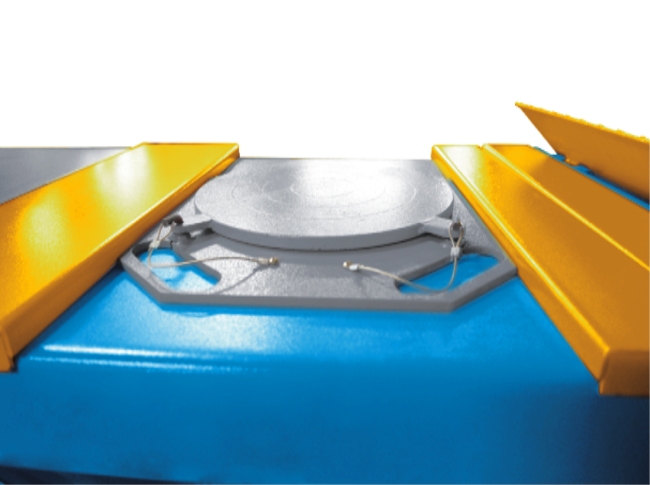

The Turntables
The Turntables

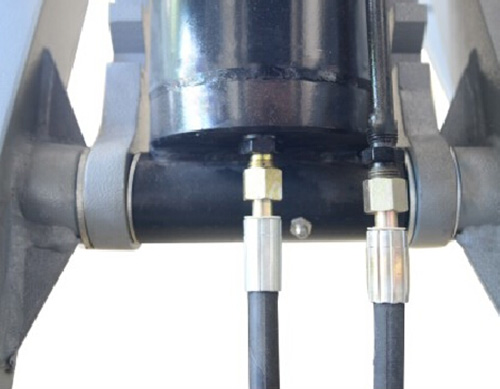

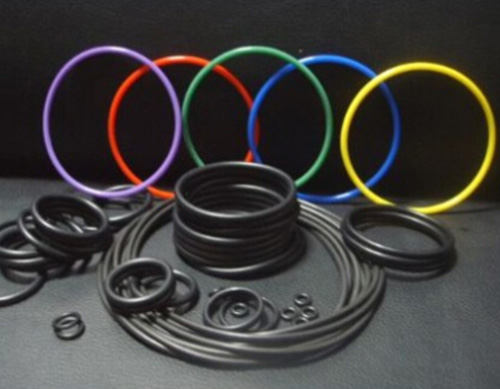

Japanese oil seals
Japanese oil seals

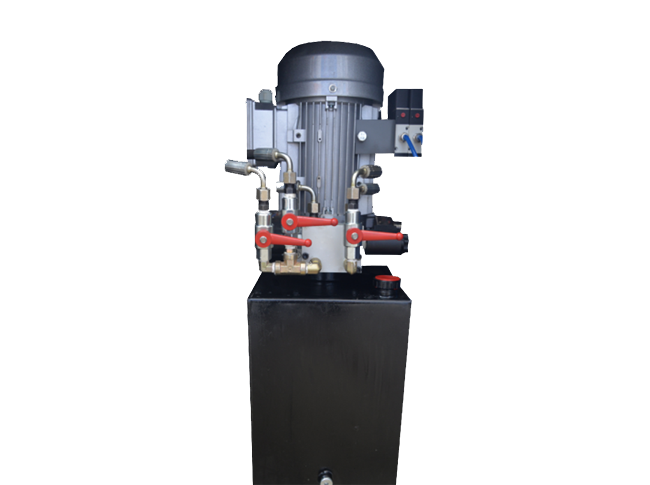

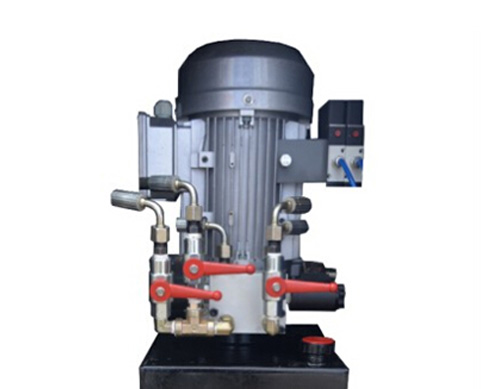

The Italian Valve
The Italian Valve
CD5040TCC Ultrathin Double Level Scissor Lif for Four Wheel Alignment
